AWS KMS Key Configurations

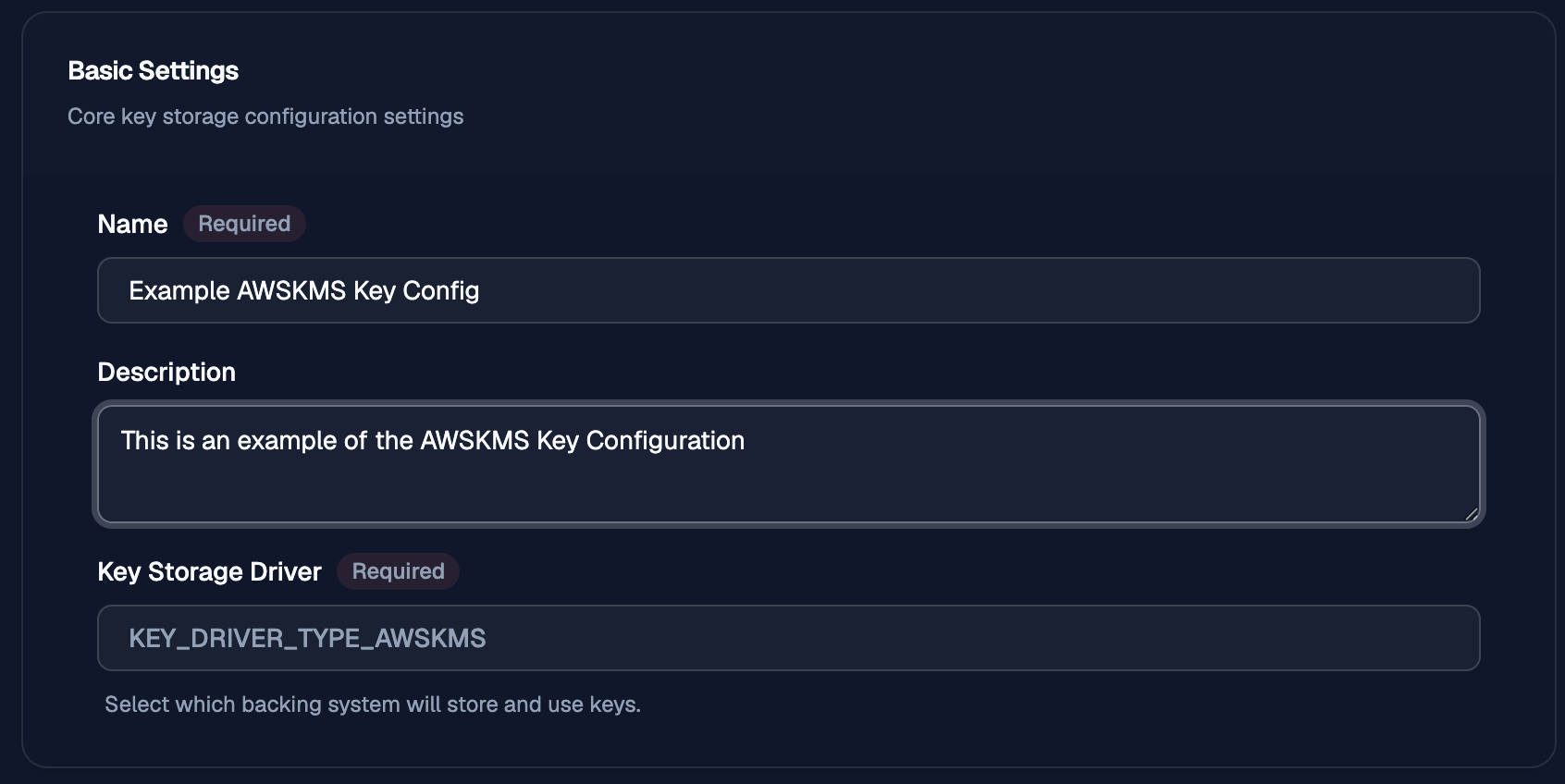

Basic Settings
The basic settings section defines the common metadata for a AWS KMS key configuration and identifies which key storage driver OTPKI will use for this configuration.
Name
Use Name to give the key configuration a clear label that operators can recognize later when selecting storage for keys or reviewing existing configurations.
Description
Use Description to record the purpose of the configuration, the environment it belongs to, or any operational notes that will help administrators distinguish it from other AWS KMS configurations.
Key Storage Driver
Key Storage Driver identifies the backing plugin used to store and operate keys. For this configuration, the driver is fixed toKEY_DRIVER_TYPE_AWSKMS.

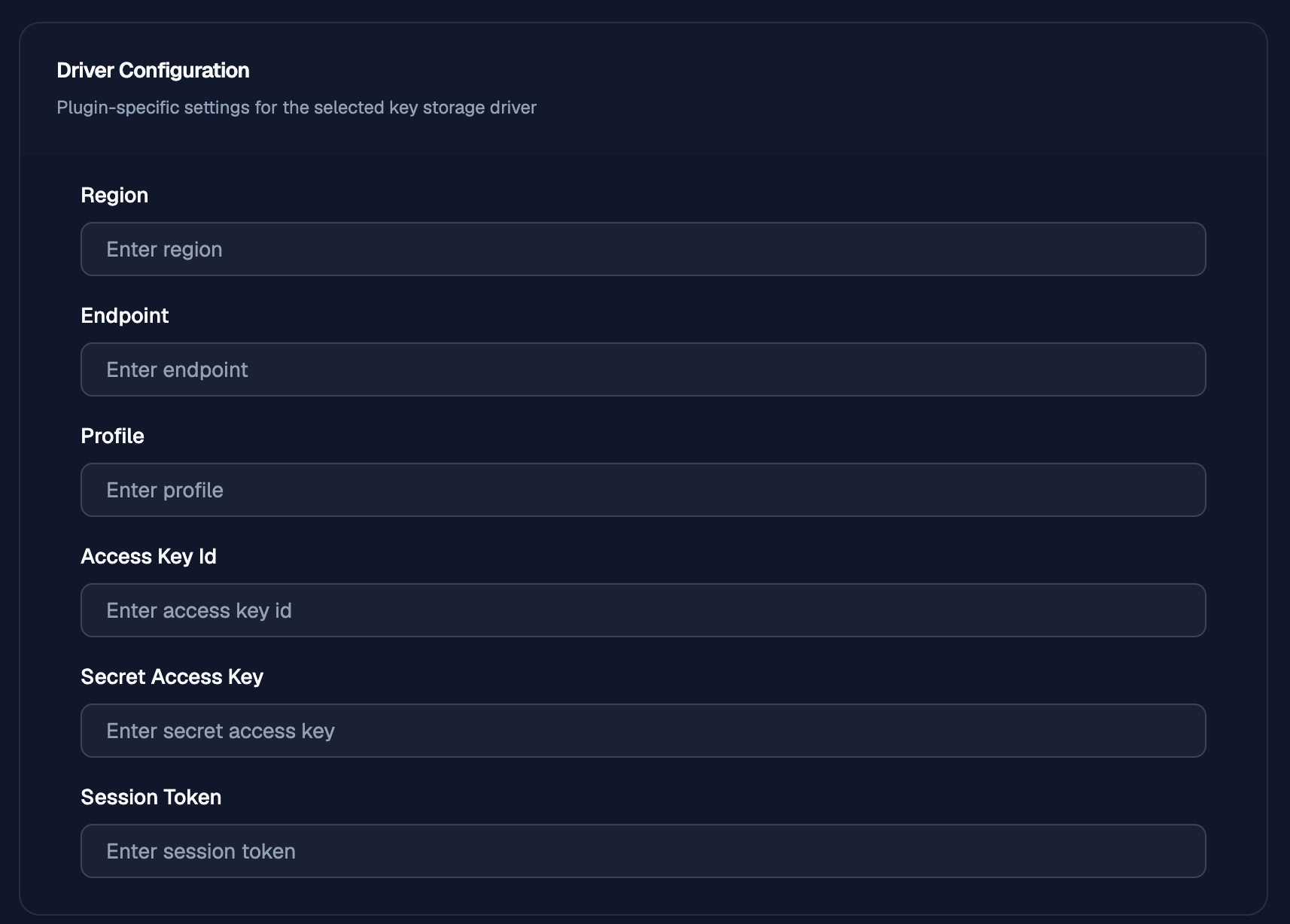

Driver Configuration
The driver configuration section contains the AWS-specific connection settings that OTPKI uses when working with AWS KMS.
For AWS KMS, the driver configuration entered on this page, including the selected region, optional custom endpoint, optional profile name, and any static credentials or session token, is stored by OTPKI and encrypted at rest.
Region
Use Region to choose the AWS region where OTPKI should connect to AWS KMS.
Endpoint
Use Endpoint when you want OTPKI to connect to a custom AWS KMS endpoint instead of the default AWS service endpoint. This is mainly useful for local or test environments.
Profile
Use Profile when you want OTPKI to use a named AWS profile from the local AWS configuration on the server.
Access Key Id
Use Access Key Id when you want to provide static AWS credentials directly in the configuration.
Secret Access Key
Use Secret Access Key together with the access key ID when you are using static AWS credentials.
Session Token
Use Session Token when the AWS credentials come from a temporary session, such as credentials issued through AWS STS.
Security
The security section defines how OTPKI protects sensitive key material and backend-specific key data associated with a AWS KMS key configuration.
Encryption Key
Use Encryption Key to select the cryptographic key OTPKI will use to encrypt stored key data that must be protected at rest.
The selected key must allow encrypt anddecrypt usage so OTPKI can protect and later read the stored configuration data.
If no encryption key is selected, OTPKI falls back to the password supplied through the OTPKI_KEY_ENCRYPTION_PASSWORDenvironment variable, supplied during deployment. If that value is blank, the data is encrypted using an empty string ("") as the password.
When an Encryption Key is selected, OTPKI uses it to encrypt the key data stored for each AWS KMS key. This includes the remote key identifier, the key ARN, and the AWS region for the key.
Activation
The activation section controls whether a key configuration must be unlocked before OTPKI can use it.
Enable Activation
Use Enable Activation when you want OTPKI to require an activation code before the key configuration can be used.
If this option is turned off, the configuration is treated as always active and no activation step is required.
Auto Activation
Use Auto Activation when you want OTPKI to remember the activation code and activate the configuration automatically when the application starts.
When this is enabled, OTPKI stores the activation code in encrypted form for later reuse.
Verify Activation
Use Verify Activation when you want OTPKI to check that the activation code matches a specific value.
Activation Code To Verify
Use Activation Code To Verify to provide the value that OTPKI compares against during activation when verification is enabled.
This is mainly useful for key storage backends that do not have their own external PIN or unlock check and need OTPKI to enforce the expected activation code itself.
For AWS KMS, activation adds an OTPKI-managed unlock step before the configuration can be used. This gives you an extra password-style control on top of the AWS connection settings.
